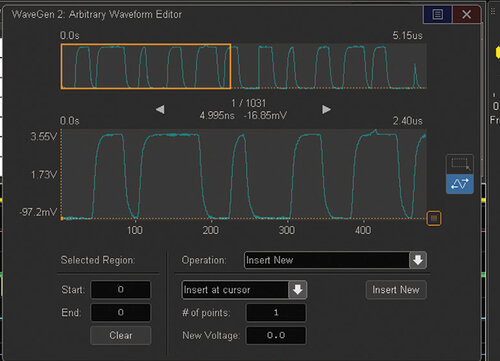

WaveGen Built-in Function/Arbitrary Waveform Generator
Waveforms
- Sine, Square, Ramp, Pulse, DC, Noise, Sine Cardinal (Sinc), Exponential Rise, Exponential Fall, Cardiac, Gaussian Pulse, and Arbitrary
Modulation:
- AM and FM
Arbitrary waveforms:
- Waveform length: 2 to 8,192 points
Amplitude:
- 2 mVpp to 10 Vpp into Hi-Z
- 1 mVpp to 5 Vpp into 50 Ω
DC offset:
- Range: ± 8 V into Hi-Z 6,7, ± 4 V into 50 Ω
- Resolution: 100 μV or 3 digits, whichever is higher
Availability:
Call or email for delivery time
WaveGen Built-in Function/Arbitrary Waveform Generator
Waveforms
- Sine, Square, Ramp, Pulse, DC, Noise, Sine Cardinal (Sinc), Exponential Rise, Exponential Fall, Cardiac, Gaussian Pulse, and Arbitrary
Modulation:
- AM and FM
Arbitrary waveforms:
- Waveform length: 2 to 8,192 points
Amplitude:
- 2 mVpp to 10 Vpp into Hi-Z
- 1 mVpp to 5 Vpp into 50 Ω
DC offset:
- Range: ± 8 V into Hi-Z 6,7, ± 4 V into 50 Ω
- Resolution: 100 μV or 3 digits, whichever is higher
