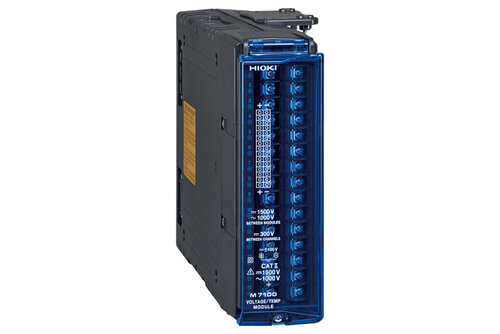

Hioki M7100 VOLTAGE/TEMP MODULE
Highly insulated module featuring high-speed sampling
Safely conduct charge/discharge testing of increasingly high-voltage batteries
Key Features and Functions
- For 600 V to 1500 V battery packs
- 15ch, voltage and temperature (thermocouple) measurement
- High-precision measurement of cell voltage
- High-speed data capture, output of data for all cells at an interval as short as 5 ms, HIL support (*1)
- *1:The functionality is exclusive to the Data Logger LR8102, which has a UDP output.
Documents and Software:
Basic specifications
Accuracy guaranteed: 1 year
Compatible models | Data Logger LR8101: Standard model |
Operating temperature and humidity range | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) |
Withstand voltage | 7.4 kV AC for 1 minute (sensitivity current 1 mA) |
Number of input channels | 15 channels |
Input terminal | M3 screw type terminal block (2 terminals per channel), equipped with terminal block cover |
Measurement parameters | Voltage |
Input method | Scan method using semiconductor relays, floating unbalanced input |
A/D resolution | 18 bits |
Maximum input voltage | ±100 V DC |
Maximum voltage between the channels | 300 V DC |
Maximum rated line-to-ground voltage | 1500 V DC in measurement category II, anticipated transient overvoltage 8000 V |
Maximum rated voltage between the modules | 1500 V DC, 1000 V AC |
Input resistance | 100 MΩ or more (voltage 10 mV f.s. to 6 V f.s. range, 1-5 V f.s. range, thermocouple all ranges) |
Data refresh interval | 5 ms (*1), 10 ms (*2), 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s |
Measurement range | Voltage: 10 mV f.s., 20 mV f.s., 100 mV f.s., 200 mV f.s., 1 V f.s., 2 V f.s., 6 V f.s., 10 V f.s., 20 V f.s., 60 V f.s., 100 V f.s., 1-5 V f.s. |
Dimensions and weight | Approx. 53W × 166H × 263D mm (2.1W × 6.5H × 10.4D in.), Approx. 1.3 kg (2.9 lbs) |
Included accessory | Instruction Manual ×1 |
Basic specifications
Accuracy guaranteed: 1 year
Compatible models | Data Logger LR8101: Standard model |
Operating temperature and humidity range | −10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing) |
Withstand voltage | 7.4 kV AC for 1 minute (sensitivity current 1 mA) |
Number of input channels | 15 channels |
Input terminal | M3 screw type terminal block (2 terminals per channel), equipped with terminal block cover |
Measurement parameters | Voltage |
Input method | Scan method using semiconductor relays, floating unbalanced input |
A/D resolution | 18 bits |
Maximum input voltage | ±100 V DC |
Maximum voltage between the channels | 300 V DC |
Maximum rated line-to-ground voltage | 1500 V DC in measurement category II, anticipated transient overvoltage 8000 V |
Maximum rated voltage between the modules | 1500 V DC, 1000 V AC |
Input resistance | 100 MΩ or more (voltage 10 mV f.s. to 6 V f.s. range, 1-5 V f.s. range, thermocouple all ranges) |
Data refresh interval | 5 ms (*1), 10 ms (*2), 20 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s |
Measurement range | Voltage: 10 mV f.s., 20 mV f.s., 100 mV f.s., 200 mV f.s., 1 V f.s., 2 V f.s., 6 V f.s., 10 V f.s., 20 V f.s., 60 V f.s., 100 V f.s., 1-5 V f.s. |
Dimensions and weight | Approx. 53W × 166H × 263D mm (2.1W × 6.5H × 10.4D in.), Approx. 1.3 kg (2.9 lbs) |
Included accessory | Instruction Manual ×1 |
