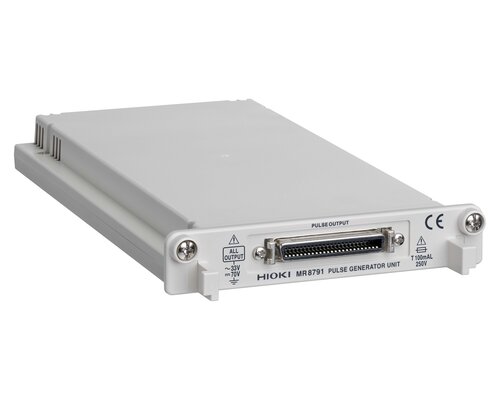

Hioki MR8791 PULSE GENERATOR UNIT
Pulse Generator Input Module for Control Simulation Testing
- Output pulse waves, pattern waves up to 8 channels per unit (output signals of TTL level, or open-collector)
- For limited models only (Cannot be used for 8847, MR8847-01, MR8847-02, MR8847-03)
- Isolated between unit and output (Not isolated between each channel [common ground])
Documents and Software:
The Pulse Generator Unit MR8791 is a plug-and-play module for Hioki Memory HiCorders to conduct control simulation testing of control boards on equipment such as engine, airbags, brake systems, and power steering.
Basic specifications
Accuracy guaranteed: 1 year
Output terminal | Number of channels: 8, Connector: D-sub, half-pitch, 50-pin |
Output mode 1 | Pattern output: Read frequency: 10 Hz to 120 kHz, 2048 logic patterns |
Output mode 2 | Logic output: Output voltage level: 0 V to 5 V |
Other | Self-test function |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
Included accessories | None |
The Pulse Generator Unit MR8791 is a plug-and-play module for Hioki Memory HiCorders to conduct control simulation testing of control boards on equipment such as engine, airbags, brake systems, and power steering.
Basic specifications
Accuracy guaranteed: 1 year
Output terminal | Number of channels: 8, Connector: D-sub, half-pitch, 50-pin |
Output mode 1 | Pattern output: Read frequency: 10 Hz to 120 kHz, 2048 logic patterns |
Output mode 2 | Logic output: Output voltage level: 0 V to 5 V |
Other | Self-test function |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
Included accessories | None |
