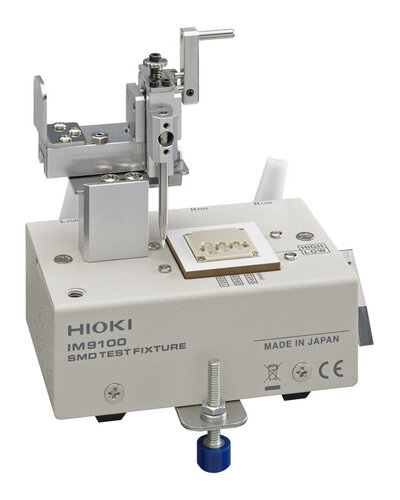

Hioki-IM9100 SMD TEST FIXTURE

High-Precision Four-Wire Testing of Ultra-Small Components from 01005 (EIA)

Key Features and Functions

  • Direct connection type
  • For measuring SMDs with electrodes on the bottom
  • DC to 8MHz measurement frequency
  • Measurable sample sizes: 01005 to 0402 (EIA), 0402 to 1005 (JIS)

Documents and Software:

Product Number:

Hioki-IM9100

Manufacturer:

Hioki

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9100 is a 4-wire direct connection test fixture that supports testing of components in various sizes that are designed with electrodes on the bottom.

Basic specifications

  • Measurement terminals: Four terminal direct connection type, BNC terminals
  • Connecting section: Four terminal type
  • Measurable sample sizes: 01005 to 0402 (EIA), 0402 to 1005 (JIS)
  • Allowable input voltage / current: Voltage: ±42 V peak (AC + DC)
  • Current: 0.15 A rms (±0.15 A DC)
  • Measurement frequency range: DC to 8 MHz
  • Supported units: IM3523, IM3533, IM3570, IM3590, 3506-10, 3511-50, 3532-50, 3522-50, IM3536
  • Accessories: Instruction manual ×1, Short supplement jig (for all sizes) ×1, Open supplement jig (for all sizes) ×2
