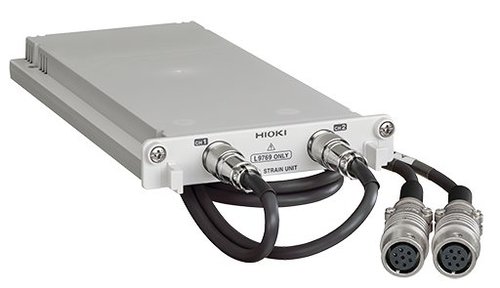

Hioki-U8969 STRAIN UNIT

Key Features and Functions

  • Directly connect to the strain gauge converter (bridge voltage: DC only)
  • 16-bit A/D high-resolution
  • Isolated input, up to 30 V AC rms, or 60 V DC from the earth
  • Meet application demands in the civil engineering, bridge building and machine tool and automotive design fields

Product Number:

Hioki-U8969

Manufacturer:

Hioki

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Measure acceleration, load, pressure or strain waveforms

Basic specifications

  • Measurement functions: Number of channels: 2, for distortion measurement (electronic auto-balancing, balance adjustment range within ±10 000 µε or less)
  • Input terminals:
    • NDIS connector EPRC07-R9FNDIS (via Conversion Cable L9769, NDIS connector PRC03-12A10-7M10.5)
    • Max. rated voltage to ground: 30 V rms or 60 V DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
  • Suitable transducer: Strain gauge converter, Bridge impedance: 120 Ω to 1 kΩ, Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0
  • Measurement range: 20 µε to 1000 µε/div, 6 ranges, full scale: 20 div, Low-pass filter: 5/10/100 Hz, 1 kHz
  • Measurement resolution: 1/1250 of measurement range (using 16-bit A/D conversion)
  • Maximum sampling rate: 200 kS/s (simultaneous sampling across 2 channels)
  • Measurement accuracy After auto-balancing: ±0.5% f.s. ±4 µε (5 Hz filter ON)
  • Frequency characteristics: DC to 20 kHz +1/-3 dB
