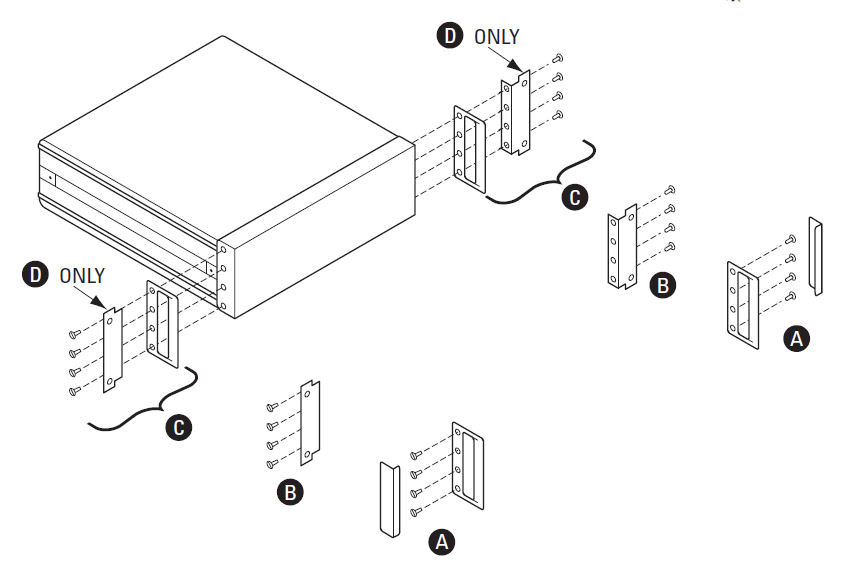

Kits - New Phantom Gray Color (Black)
| Instrument Height | Front Handle Kit (A) | Rackmount Flange Kit (B) | Rackmount Flange Kit (B) Includes 4 x hole plugs | Flange Kit with Handles (C) | Flange Kit for Previously Supplied Handles (D) |
|---|---|---|---|---|---|
| 88.1 mm (2U) | 1CN106A | 1CM107A or DAQA191A | 1CM110A | 1CM111A | 1CM122A |
| 132.6 mm (3U) | 1CN107A | 1CM104A | NA | 1CP108A | 1CM104A |
| 177.0 mm (4U) | 1CN103A | 1CM113A | 1CM114A | 1CP105A | 1CM127A |
| 221.5 mm (5U) | 1CN105A | 1CM115A | NA | 1CP120A | 1CM143A |
| 265.9 mm (6U) | 1CN120A | 1CM142A | NA | 1CP119A | 1CM136A |
| 310.4 mm (7U) | NA | 1CM133A | NA | 1CP122A | 1CM138A |

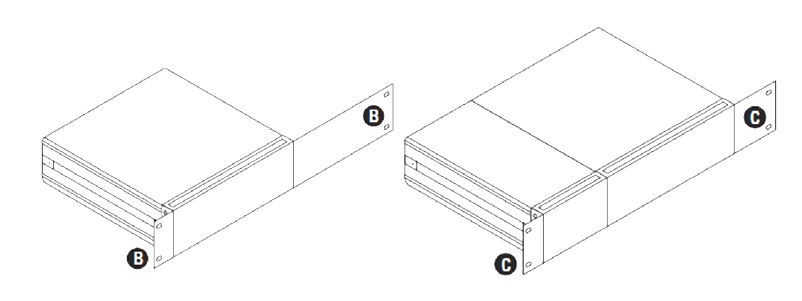

Rackmount Adapter Kits - New Phantom Gray Color (Black)
| Adapters | Mounts ½ MW or two each ¼ MW7 modules (B) | Mounts ¾ MW (3 each ¼ MW8 or ¼ and ½ MW side-by-side) (C) |
|---|---|---|
| 88.1 mm (2U) | 1CM124A or DAQA190A | 1CM119A |
| 132.6 mm (3U) | 1CM116A | NA |

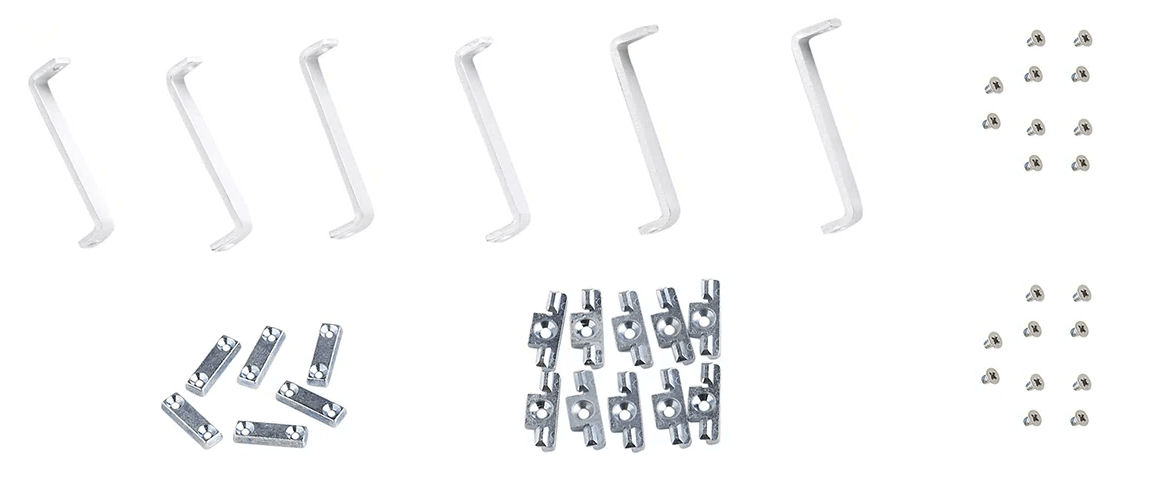

Lock Link Kits
| Lock Link Kit |
Used for side-by-side combinations and includes links for instruments of different depths. | |
|---|---|---|
| 34194A | DAQA194A | |
