Keysight D9060GDDC GDDR6 Tx Compliance Test Software
Key Features & Specifications
- Compliance testing of clock, electrical, and timing measurements in accordance to JEDEC specifications

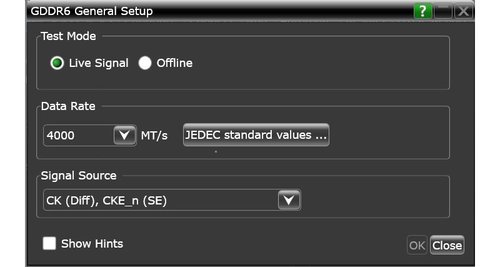

- Test setup wizard guides you through test selection, configuration, connection, execution, and results reporting
- Oscilloscope setup is automatically configured for each test and Measurement connection setups are displayed
- Test results report documents test configuration, measurements made, pass/fail status, margin analysis, and waveforms
Standards Supported:
- JEDEC JESD 1836.99D Rev 3 (2019)
Requirements:
- D9020SCNA InfiniiScan Event Identification Software
- D9020JITA EZJIT Complete SW
The D9060GDDC GDDR6 compliance test software gives you a fast, easy way to test, debug and characterize your GDDR6 designs. GDDR6 devices operate as fast as 16GT/s and feature a smaller footprint. At these fast transfer speeds, signal integrity is key to reliable and interoperable performance. The D9060GDDC GDDR6 compliance test software performs a combination of clock, electrical, and timing measurements that let you thoroughly evaluate devices in accordance with the JEDEC JESD 1836.99D Rev 3 (2019) GDDR6 SGRAM Specification. In addition, the debug mode provides further insights for root-cause analysis.
The D9060GDDC GDDR6 compliance test software gives you a fast, easy way to test, debug and characterize your GDDR6 designs. GDDR6 devices operate as fast as 16GT/s and feature a smaller footprint. At these fast transfer speeds, signal integrity is key to reliable and interoperable performance. The D9060GDDC GDDR6 compliance test software performs a combination of clock, electrical, and timing measurements that let you thoroughly evaluate devices in accordance with the JEDEC JESD 1836.99D Rev 3 (2019) GDDR6 SGRAM Specification. In addition, the debug mode provides further insights for root-cause analysis.
