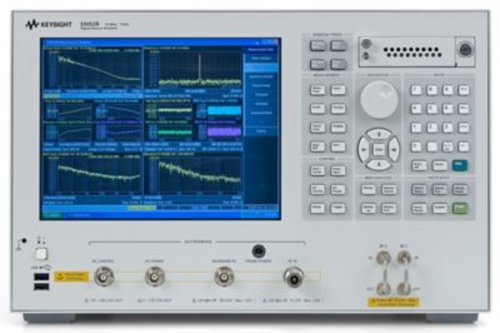

Keysight E5052B 10 MHz to 7 GHz Signal Source Analyzer

Frequency range

  • RF Input frequency range: 10 MHz to 110 GHz
  • Analysis offset frequency range: 1 Hz to 100 MHz
  • Phase noise measurement with ultra low noise floor and a cross-correlation method
  • Frequency transient capture range: up to 80 MHz in narrow band, up to 4.8 GHz in wide band

Noise measurement functions

  • Phase noise with ultra low noise floor and a cross-correlation method
  • AM noise measurement and phase noise measurement without changing RF connection
  • Baseband noise measurement from 1 Hz to 100 MHz
  • Spectrum monitoring up to 15 MHz span in a real-time mode

Analysis capabilities

  • Simultaneous transient measurements for frequency, phase and power over time
  • Capture of unexpected frequency change with video trigger function
  • Complete VCO characterization with outstanding low-noise DC sources(frequency/power/DC-supply-current over Vc and Vs)
  • Clock jitter measurement with femto-second resolution

Product Number:

E5052B

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Frequency range

  • RF Input frequency range: 10 MHz to 110 GHz
  • Analysis offset frequency range: 1 Hz to 100 MHz
  • Phase noise measurement with ultra low noise floor and a cross-correlation method
  • Frequency transient capture range: up to 80 MHz in narrow band, up to 4.8 GHz in wide band

Noise measurement functions

  • Phase noise with ultra low noise floor and a cross-correlation method
  • AM noise measurement and phase noise measurement without changing RF connection
  • Baseband noise measurement from 1 Hz to 100 MHz
  • Spectrum monitoring up to 15 MHz span in a real-time mode

Analysis capabilities

  • Simultaneous transient measurements for frequency, phase and power over time
  • Capture of unexpected frequency change with video trigger function
  • Complete VCO characterization with outstanding low-noise DC sources(frequency/power/DC-supply-current over Vc and Vs)
  • Clock jitter measurement with femto-second resolution
