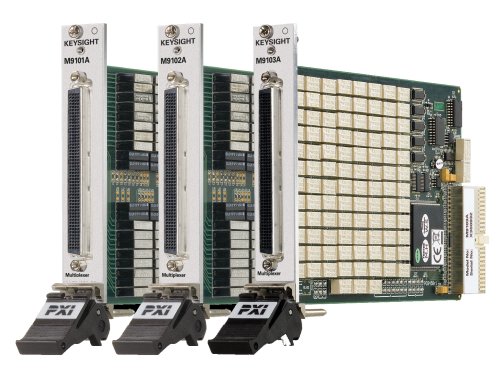

Keysight M9103A PXI High Density Multiplexer: 99-ch, 2-wire, 100 VDC/1 A, EM Relays

Application

  • Switch many different points to a single instrument for data acquisition and automated test applications

Functionality

  • 99-channel, high-density 2-wire switch multiplexer
  • 100Vrms
  • 1A switch/carry current
  • 60W max power

Performance characteristics

  • Durable 60W armature switches
  • Break-before-make or simultaneous switch closures

Product Number:

M9103A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The M9103A is a high-density, high-power 99-channel multiplexer in a single PXI module. This module will route many different channels to a single point. The switches can operate in a break-before-make mode, ensuring no two points are connected at the same time, or, if needed, multiple channels can be simultaneously connected. This module is ideal for routing multiple analog signals to a measurement device in an automated test environment (ATE) or data acquisition systems. Each channel switch has a high and low for 2-wire switching. The high-quality armature relays are capable of switching up to 100Vrms, with up to 60W of power. Choose from the durable connector block or standard cable connections.

Software drivers support most common programming environments such as Visual Studio®, C, C++, C#, Visual Basic, MATLAB® and LabVIEW™. The high-quality switches with durable connections ensure trustworthy measurements. Installation and configuration are fast and easy with Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.
