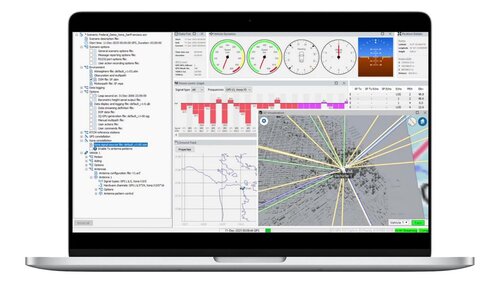

Keysight PNT22100A SimXona
Signal generation capabilities
- Supports Xona Pulsar demonstration signal (XL) and production signals (X1, X5)
- Generates I/Q files at 30 or 60 MHz sample rate with 16-bit depth
- Worldwide scenario coverage within bounded timespans using Xona-provided SP3 orbital data
- Supports both static and moving vehicle scenarios
- Enables Xona Pulsar LEO PNT signal generation alongside GNSS for advanced Assured PNT testing
Compatible with PNT X and GSS7000 simulator platforms
- On PNT X, the I/Q generator is built into the C50 X - no additional chassis required
- For GSS7000, a standalone I/Q generator and optional signal generator extend existing systems
- Existing GSS7000 simulators can be upgraded to produce Xona Pulsar signals alongside GNSS
- Controlled through SimGEN software for scenario definition, I/Q task scheduling, and radio frequency (RF) simulation execution
Signal generator performance (GSS7000 extension)
- 0.1 dB carrier level control resolution with
Developing robust PNT systems requires comprehensive, highly sophisticated testing that encompass all the PNT signals that your application requires. In addition to GNSS, complementary alternative navigation signals are increasingly used to assure the operation of PNT systems in ever more challenging environments.
Developing robust PNT systems requires comprehensive, highly sophisticated testing that encompass all the PNT signals that your application requires. In addition to GNSS, complementary alternative navigation signals are increasingly used to assure the operation of PNT systems in ever more challenging environments.
The content of SimXona’s user-defined scenarios allows for worldwide coverage within bounded timespans leveraging satellite information available from Xona Space Systems. This testing capability makes SimXona an ideal solution for all applications where accurate and realistic evaluation of GNSS receivers’ performance is required.
Developing robust PNT systems requires comprehensive, highly sophisticated testing that encompass all the PNT signals that your application requires. In addition to GNSS, complementary alternative navigation signals are increasingly used to assure the operation of PNT systems in ever more challenging environments.
Developing robust PNT systems requires comprehensive, highly sophisticated testing that encompass all the PNT signals that your application requires. In addition to GNSS, complementary alternative navigation signals are increasingly used to assure the operation of PNT systems in ever more challenging environments.
The content of SimXona’s user-defined scenarios allows for worldwide coverage within bounded timespans leveraging satellite information available from Xona Space Systems. This testing capability makes SimXona an ideal solution for all applications where accurate and realistic evaluation of GNSS receivers’ performance is required.
