Keysight PNT24001A SimXTRACT
Signal decomposition and analysis
- Breaks down recorded IQ data into discrete components - line-of-sight and multipath - with Doppler error, error code and power level metadata
- Supports GPS (L1, L5) and Galileo (E1, E5a); GLONASS, BeiDou, and Quasi-Zenith Satellite System (QZSS) support coming soon

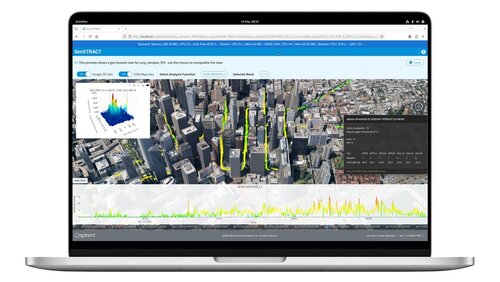

- Enables analysis of multipath and other attributes for a given field recording intuitively on a map
Test workflow and integration
- Outputs scenario test files compatible with Keysight PNT emulators (PNT X, GSS7000, PNT Xe)
- Runs on a dedicated Laptop PC
- Searches decomposed data by multipath, satellites in view, signal-to-noise ratio (SNR), and signal type
SimXTRACT overcomes the problem of understanding composite GNSS signals in a real environment, and how & why they affect a PNT device’s performance, by decomposing captured I/Q data from record and playback systems into discrete line-of-sight signals, multipath, and precise ground truth. This enables the creation of a fully editable GNSS simulation scenarios that replicate the original environment, but in a Keysight PNT emulator with the full control and manipulation that these tools provide.
