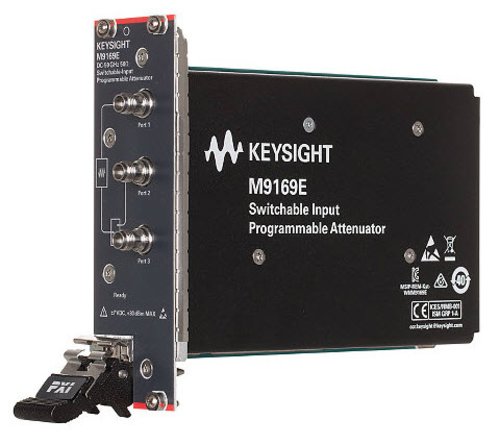

Keysight M9169E PXI-h Switchable-Input Programmable Attenuator Module, DC-50.0 GHz
- Guaranteed 0.03 dB insertion loss repeatability through the operating life of up to 5 million cycles
- Broad attenuation range of 0 to 70 dB, with 2 dB step
- High attenuation accuracy and flatness
The M9169E is a 3-port PXI programmable step attenuator module with a switchable path for a calibrator signal (cal input) into the input of a signal analyzer to improve amplitude accuracy. The M9169E has 0.03 dB insertion loss repeatability throughout the operating life of up to 5 million cycles per section. Its excellent attenuation accuracy across a wide operating temperature range ensures precise measurements.
