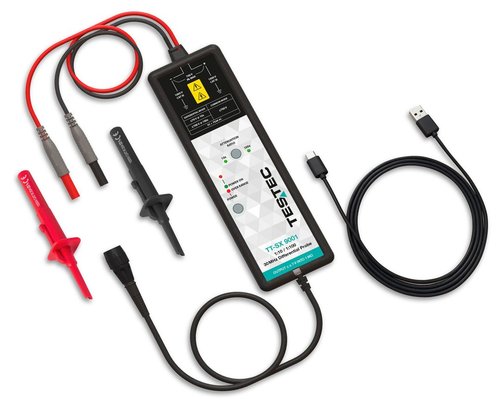

Omicron TT-SX 9001 Active Differential Probe
Key Features:
- Enables measurements in circuits with high voltages up to 700 V
- Avoids grounding problems
- CAT III rated inputs
- Powered by USB-C or AA batteries
Some Technical Data:
- Bandwidth: DC to 30 MHz (-3 dB)
- Attenuation ratio: 1/10 or 1/100
- Gain Accuracy: ±2 %
- Differential input voltage range: 70 V @ 1/10; 700 V @ 1/100
- Common mode input voltage range: 700 V @ 1/10 & 1/100
Stock
Call or email for delivery time
TT-SX 9001 Active Differential Probe
An active differential probe can be used to avoid grounding issues or perform measurements on floating voltages. The advantage of the TT-SX 9001 is that it can handle high voltages up to 70 Vpeak in 10x setting and 700 Vpeak in 100x setting.
