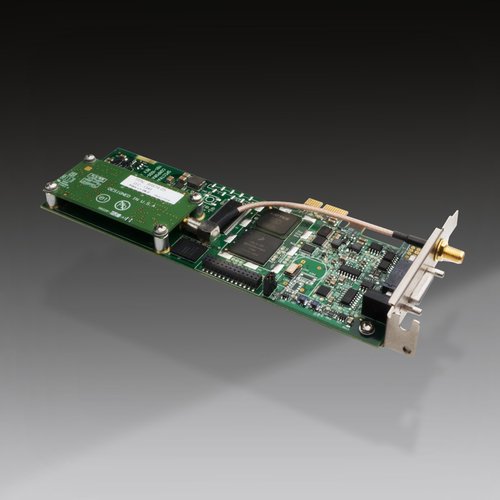

Safran-TSYNC PCI TIMING BOARDS
Key Features and performance
- PCIe, cPCI, PCI-104, PMC, VPX
- Others available upon request
- Rugged design
- Conduction-cooled ready
- Conformal coating available Available References
- GNSS synchronization (multiconstellation)
- SAASM GPS option
- IRIG timecode
- 1PPS
- Internal clock Timing Functions
- IRIG timecode generator
- 1PPS and programmable periodic output
- 10 MHz output
- Event time-tagging
- Time-match/alarm signal
Additional Documents:
Safran TSync time code processors are complete synchronization systems on circuit cards ready for easy integration into mission-critical applications.
Each board has an onboard clock/oscillator that can phase-lock to a wide variety of external timing references and provides 5 ns resolution to the timekeeping hardware. The user can prioritize multiple references so if one is lost the unit will automatically switch to the next. The oscillator can be its own reference when it “freewheels” in the absence of a valid external synchronization source. For applications where accuracy in this “holdover” conditional is essential, an upgrade to a higher precision ovenized crystal oscillator (OCXO) is available.
Four user-programmable time tag inputs may be used for multiple event capture at 10,000 events per second. Additionally, four programmable time match outputs are provided. Key to the TSync functionality is the ability to generate interrupts. Using a Safran driver package available for the latest versions of popular operating systems, you may configure your board using interrupt-driven algorithms to support your unique applications.
Safran TSync time code processors are complete synchronization systems on circuit cards ready for easy integration into mission-critical applications.
Each board has an onboard clock/oscillator that can phase-lock to a wide variety of external timing references and provides 5 ns resolution to the timekeeping hardware. The user can prioritize multiple references so if one is lost the unit will automatically switch to the next. The oscillator can be its own reference when it “freewheels” in the absence of a valid external synchronization source. For applications where accuracy in this “holdover” conditional is essential, an upgrade to a higher precision ovenized crystal oscillator (OCXO) is available.
Four user-programmable time tag inputs may be used for multiple event capture at 10,000 events per second. Additionally, four programmable time match outputs are provided. Key to the TSync functionality is the ability to generate interrupts. Using a Safran driver package available for the latest versions of popular operating systems, you may configure your board using interrupt-driven algorithms to support your unique applications.
