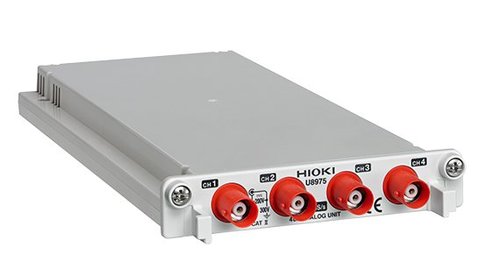

Hioki-U8975 4CH ANALOG UNIT
Key Features and Functions
- High speed sampling of 5 MS / s ensures catching high speed phenomena
- Insulated 4 channel input (ground-to-ground AC, DC 300 V)
- High resolution measurement with 16 bit A/D
- For Memory HiCorder MR6000 only
Documents and Software:
Stock
Call or email for delivery time
High speed sampling of 5 MS / s ensures catching high speed phenomena
Basic specifications
- Measurement functions: Number of channels: 4, for voltage measurement
- Input terminals:
- Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 30 pF)
- Max. rated voltage to earth: 300 V AC or DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
- Measurement range:
- 4, 10, 20, 40, 100, 200 V f.s., 6 ranges
- (AC voltage for possible measurement/display using the memory function: 140 V rms)
- Low-pass filter: 5/500/5 k/200 kHz
- Measurement resolution: 1/32000 of measurement range (using 16-bit A/D conversion)
- Highest sampling rate: 5 MS/s (4 channel simultaneous sampling)
- Measurement accuracy: ±0.1% f.s. (with filter 5 Hz, zero position accuracy included)
- Frequency characteristics: DC to 2 MHz -3 dB
- Input coupling: DC/GND
- Max. allowable input: 200 V DC (when direct input)
