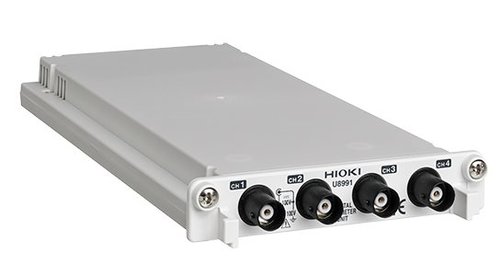

Hioki-U8991 DIGITAL VOLTMETER UNIT
For minute voltage measurement, 6 1/2-digit high resolution: Max 1200000 counts
Key Features and Functions
- DVM unit dedicated to 4-channel DCV measurement, 108 channels simultaneous sampling in combination with MR8740T
- High-precision measurement of fine voltage fluctuation investigation etc. of sensor output
- High accuracy of ±0.02 % and super-high 1.2 million-count resolution
- High-speed sampling at 50 samples/s
- Isolated input (channel-to-channel and channel-to-chassis: max. rated voltag to earth of 100 V AC/DC)
Stock
Call or email for delivery time
Digital Voltmeter unit, 4 ch, DC V input, 1 microV resolution, 50 times/s sampling, for the MR8740-50
Basic specifications
- Measurement functions: Number of channels: 4, for DC voltage measurement
- Input terminals:
- Isolated BNC connectors (Input impedance: 100 MΩ or higher with 1 V f.s. to 10 V f.s. range, otherwise 10 MΩ)
- Max. rated voltage to ground: 100 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
- Measurement range: 1, 10, 100 V f.s., 3 ranges
- Measurement resolution: 1/1 000 000 of measurement range (using 24-bit ΔΣ modulation A/D)
- Integration time: 20 ms × NPLC (during 50 Hz), 16.67 ms × NPLC (during 60 Hz)
- Basic measurement accuracy: ±0.02% rdg. ±0.0025% f.s.
- Maximum input voltage: 100 V DC (maximum voltage that can be applied across input pins without damage)
