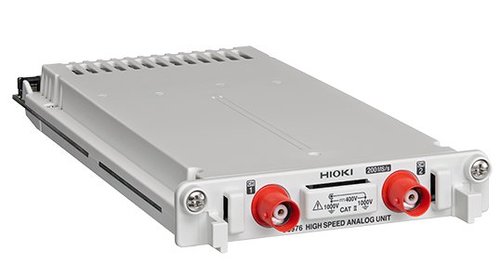

Hioki-U8976 HIGH SPEED ANALOG UNIT
High speed 200 MS / s, isolated input
Key Features and Functions
- High-speed sampling of 200 MS / s ensures catching high-speed phenomena
- Isolated input (ground-to-ground AC, DC 1000 V)
- High resolution measurement with 12 bit A/D
- For Memory HiCorder MR6000 only
Documents and Software:
Stock
Call or email for delivery time
'High Speed analog unit, voltage input, 200MS/s (DC to 30 MHz), for the MR6000 and similar products
Basic specifications
- Measurement functions:
- Number of channels: 2, for voltage measurement
- Input terminals: Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 22 pF)
- Max. rated voltage to earth: 1000 V AC or DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
- Measurement range:
- 100, 200, 400 mV f.s., 1, 2, 4, 10, 20, 40, 100, 200, 400 V f.s., 12 ranges
- (AC voltage for possible measurement/display using the memory function: 280 V rms)
- Low-pass filter: 5/500/5 k/1 MHz
- Measurement resolution: 1/1600 of measurement range (using 12-bit A/D conversion)
- Highest sampling rate: 200 MS/s (2 channel simultaneous sampling)
- Measurement accuracy: ±0.5% f.s. (with filter 5 Hz, zero position accuracy included)
- Frequency characteristics: DC to 30 MHz -3 dB, with AC coupling: 7 Hz to 30 MHz -3dB
- Input coupling: AC/DC/GND
- Max. allowable input: 400 V DC (when direct input), 1000 V DC (when using the 9665)
