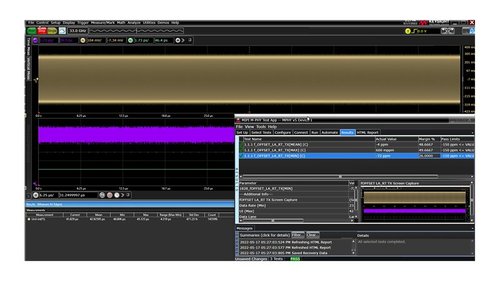

Keysight D9050MPHC MIPI G5 M-PHY Tx Compliance Software
Key Features & Specifications
- Performs TX compliance testing of MIPI M-PHY devices for HS-GEAR1 through HS-GEAR5
- Provides testing based on the MIPI M-PHY v5.0 specification and CTS
- Automated oscilloscope measurement setup, testing and reporting for increased accuracy, time-savings and repeatability
- Automated margin analysis
Requirements
- Infiniium UXR-Series Oscilloscope with firmware 11.30.00406 or greater
- D9020JITA EZJIT Complete – Jitter and Vertical Noise Analysis Software
- D9020ASIA Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
MIPI M-PHY V5.0 TX Conformance Software to test, debug and characterize your designs. It automates the oscilloscope for each test and generates a HTML report. The software reports the margin analysis with pass or fail status.
The MIPI M-PHY compliance test software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your M-PHY data links. The M-PHY electrical test software allows you to automatically execute MIPI M-PHY conformance tests for your NAND flash memory or Application processor. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
MIPI M-PHY V5.0 TX Conformance Software to test, debug and characterize your designs. It automates the oscilloscope for each test and generates a HTML report. The software reports the margin analysis with pass or fail status.
The MIPI M-PHY compliance test software for Infiniium oscilloscopes gives you a fast, easy way to validate and debug your M-PHY data links. The M-PHY electrical test software allows you to automatically execute MIPI M-PHY conformance tests for your NAND flash memory or Application processor. The application automatically displays the results in a flexible report format. In addition to measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.
