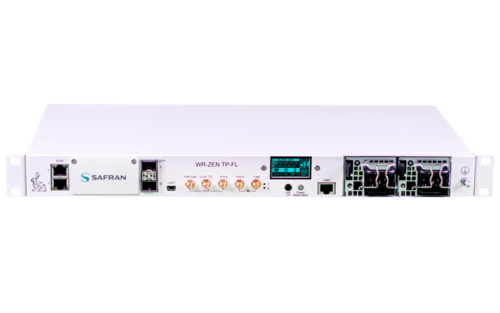

Safran-WHITE-RABBIT-ZEN-TP-FL The fundamental stand-alone node
FEATURES
- Sub-nanosecond time accuracy
- Remote configuration and monitoring.
- Distance range: over 80 km using fiber.
- Xilinx Zynq Family ( ARM Dual Core).
- WR, PTPv2.
- Robustness & Redundancy.
- 4x1PPS expansion / 8x1PPS expansion boards optionally supported.
SPECS
- Size: 444 x 43 x 221 mm
- Environmental Conditions
- Temperature: -10ºC ~ +50ºC
- Humidity: 0% ~ 90% RH
- Timing & Front Panel
- Ethernet
- 2x 10/100/1000 Base-T RJ45 (Management, PTP, NTP)
- SFP Ports
- 2x 1GbE
- Clocks I/O
- 5xSMA coaxial connectors (3V/50?):
- 10 MHzSINOUT ref. clock (PLL)
- CLK OUT(LVTTL)
- PPS OUT (LVTTL)
- PPS IN (LVTTL)
- 10MHz IN (TTL/CMOS/ ECL/clipped sine)
- LCD
- Information panel for alert & network
- Expansion
- 4x SMA coaxial connectors(3.3V/50?):
- PPS out(LVTTL
The fundamental standalone node that provides the White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-FL easily distributes time and frequency to other equipment by implementing widely available timing protocols: PTP, NTP, 10MHz/PPS.
The WR-ZEN TP-FL combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy in a cost-effective 1U form factor.
The fundamental standalone node that provides the White Rabbit features to a wide range of applications making use of its redundant connections. The WR-ZEN TP-FL easily distributes time and frequency to other equipment by implementing widely available timing protocols: PTP, NTP, 10MHz/PPS.
The WR-ZEN TP-FL combines ultra-stable clocks with low jitter and temperature compensated clock resources to enhance its synchronization accuracy in a cost-effective 1U form factor.
