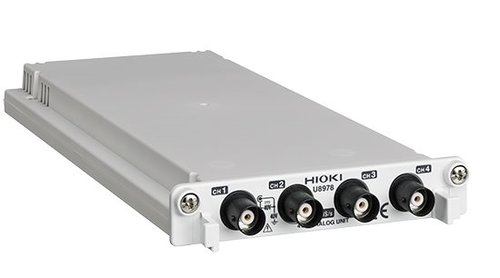

Hioki-U8978 4CH ANALOG UNIT
Key Features and Functions
- 4 analog channels in 1 unit
- Measurement of sensor output, etc. with high sensitivity range of 100 mV f.s.
- High speed sampling of 5 MS / s ensures high-speed phenomena are captured
- High 16-bit A/D resolution
Stock
Call or email for delivery time
4 channel analog unit, voltage input, 5MS/s (DC to 2 MHz), for the MR6000 and similar products
Basic specifications
- Measurement functions: Number of channels: 4, for voltage measurement
- Input terminals:
- Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 30 pF)
- Max. rated voltage to earth: Direct input: 30 V AC, 60 V DC,
- When combined with the 9665: 300 V AC, DC (CAT II)
- (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
- Measurement range:
- 100, 200, 400 mV f.s., 1, 2, 4, 10, 20, 40 V f.s., 9 ranges
- Low-pass filter: 5/500/5 k/200 kHz
- Measurement resolution: 1/32000 of measurement range (using 16 bit A/D conversion)
- Highest sampling rate: 5 MS/s (4 channel simultaneous sampling)
- Measurement accuracy: ±0.3% f.s. (with filter 5 Hz, zero position accuracy included)
- Frequency characteristics: DC to 2 MHz -3 dB
- Input coupling: DC/GND
- Max. allowable input: 40 V DC (with direct input), 400 V DC (when using the 9665)
